I have recently been commissioned to build a 10-string classical guitar. Below are some photo's of my progress and the finished guitar.

Soundboard : AAA Western Red Cedar

Back and Sides : AAA Indian Rosewood

Fingerboard : 1st grade African Ebony

Neck : Spanish Cedar

Bridge: Indian Rosewood

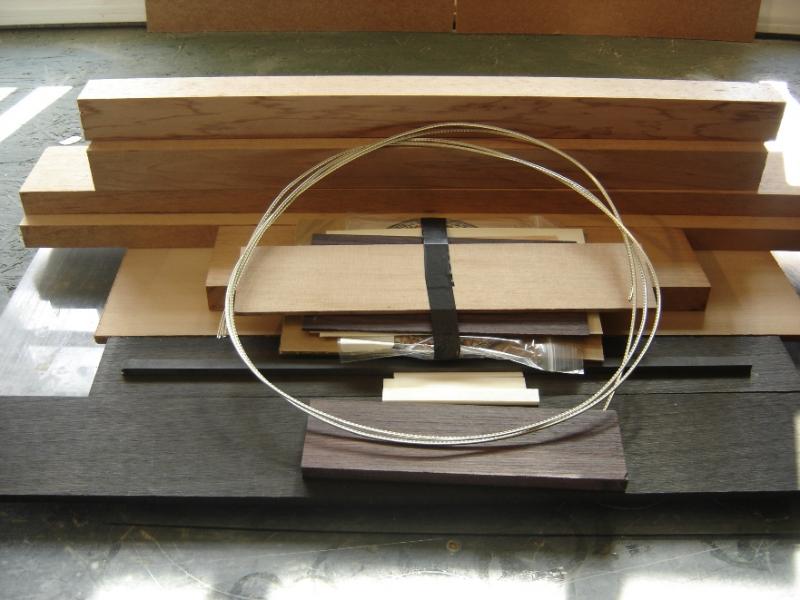

All the raw materials in a pile!

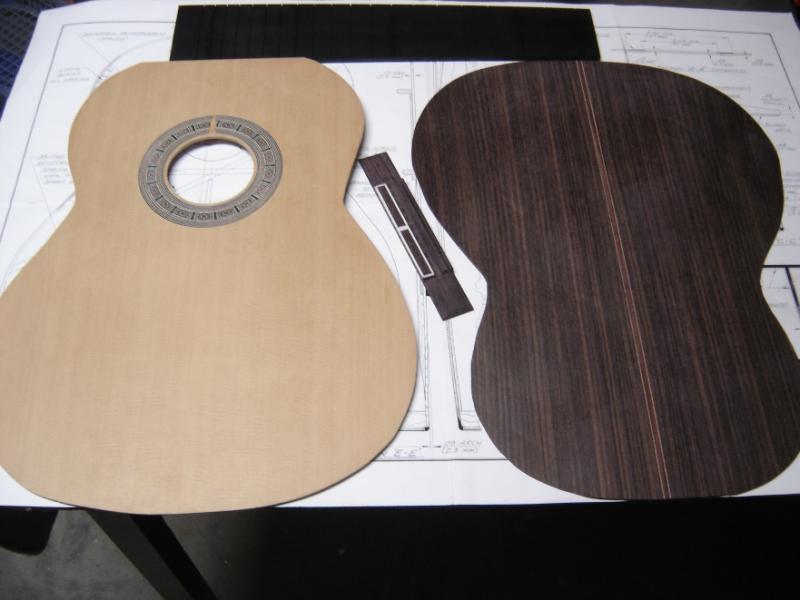

   The soundboard and back after thicknessing, fitting the rossette and profiling, as well as the completed bridge and profiled and slotted fingerboard.

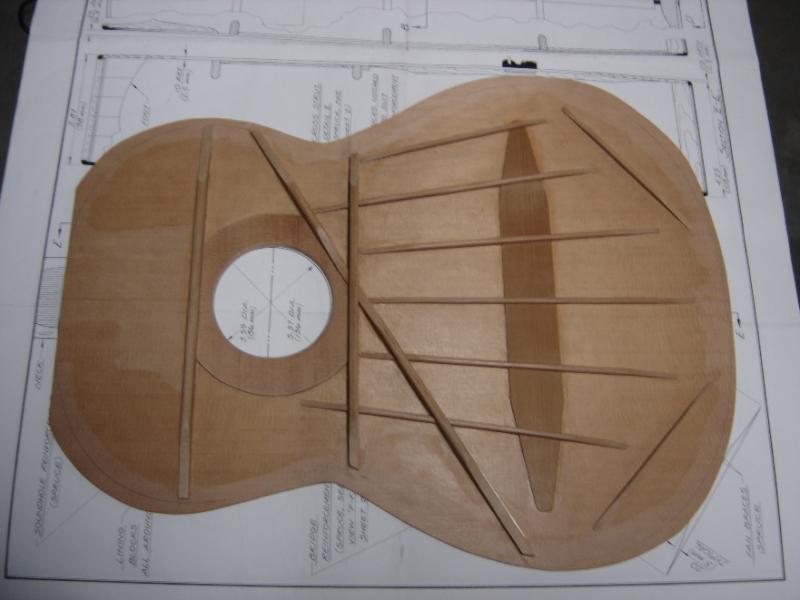

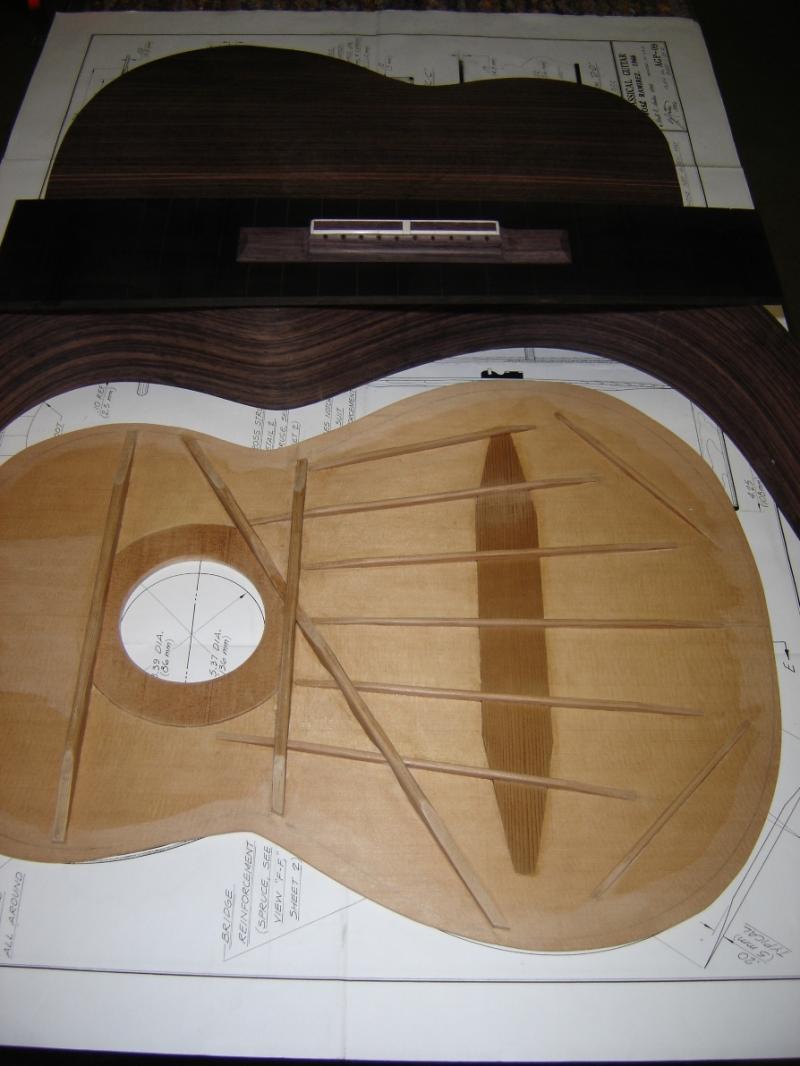

The completed soundboard, based on the standard Ramirez 1966 model. I have recessed the lower harmonic bar and the cross bar to allow the longer fan struts to extend further onto the upper bout. I believe this will add a little extra stiffness to counter the tension from the additional strings. I have also lengthened and widened the bridge pad to help support the longer and slightly wider bridge. I have sealed it with a coat of shellac, leaving the glueing areas uncoated. These areas will be sealed after installation.

Dimensions:

Soundboard: 2.45mm thick (to be taken slightly thinner on the outer edge of the lower bout after installation)

Back: 2.20mm thick

Sides: 2.00mm thick

Bridge pad: 0.75mm thick

Fan struts: 4mm wide x 5.5mm high

Harmonic bars and cross bar: 6.5mm wide x 13mm high.

Bridge: 31mm wide x 204mm long. String spacing = 11mm

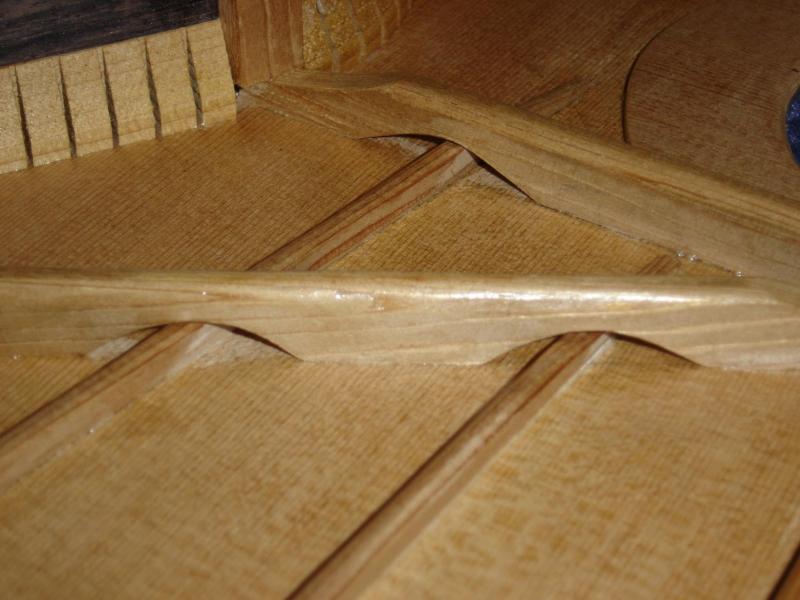

The lower harmonic bar and cross bar have been recessed to allow for the longer fan struts.

Some of the completed items, except for the back that still needs supports.

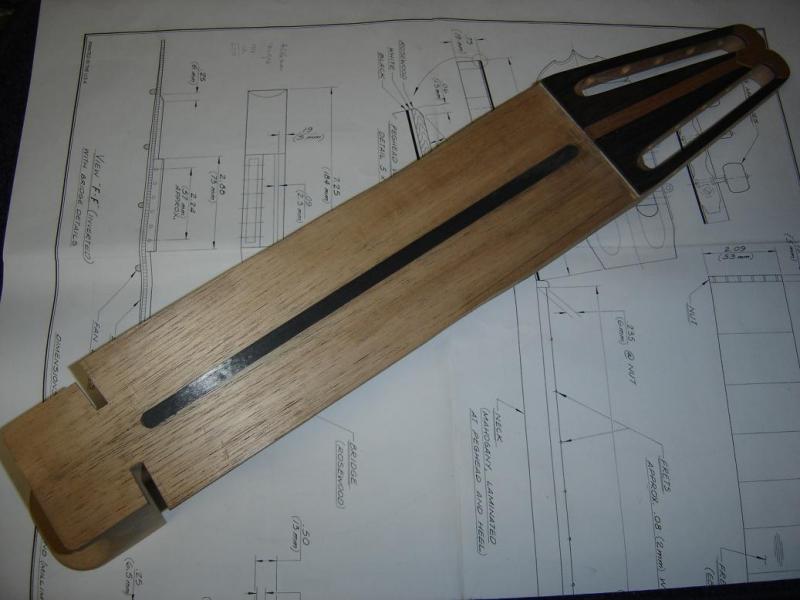

 The neck fitted with graphite reinforcement.

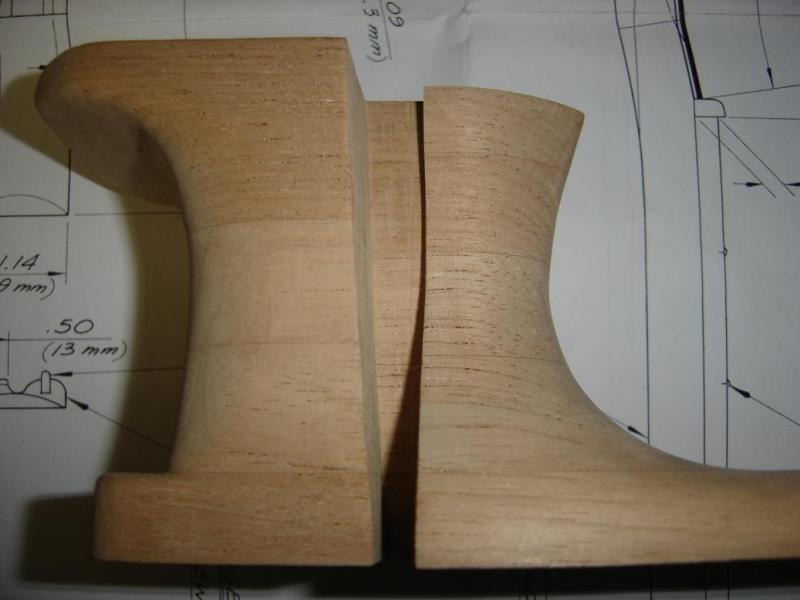

 Details of the heel profile.

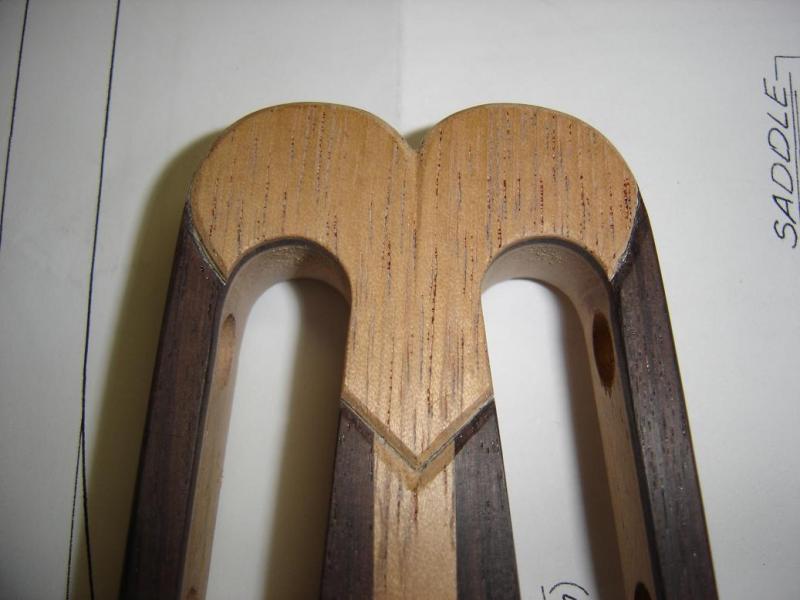

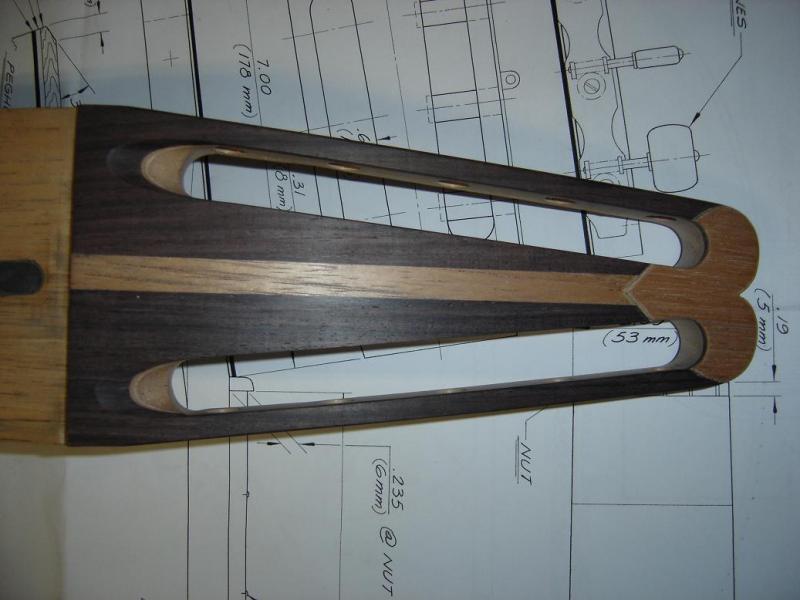

 A close-up of the head.

A close-up of the head inlay and carving.

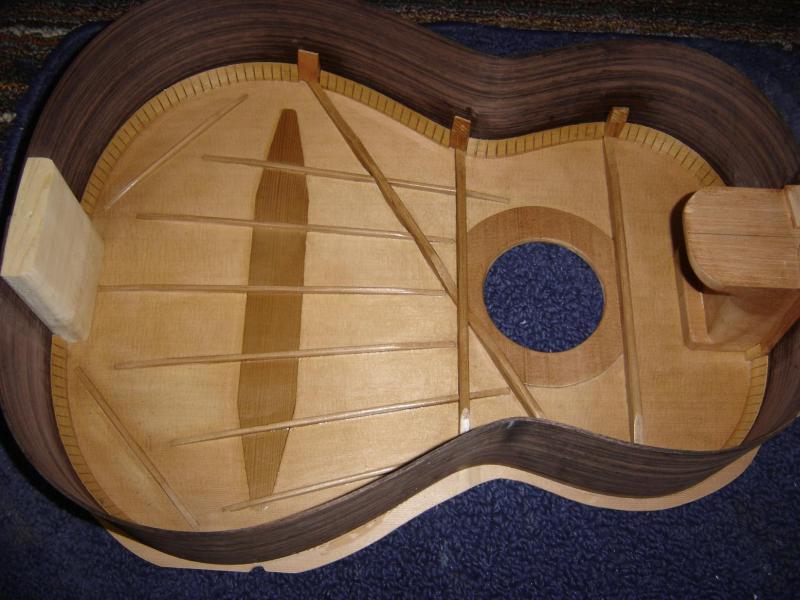

The soundboard, end-block, neck and sides assembled.

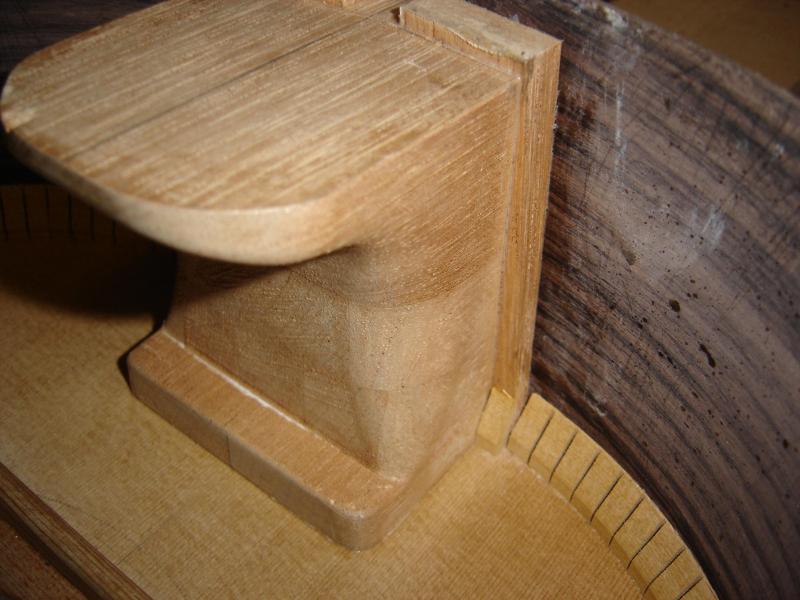

The wedge lock system to hold the neck and sides together.

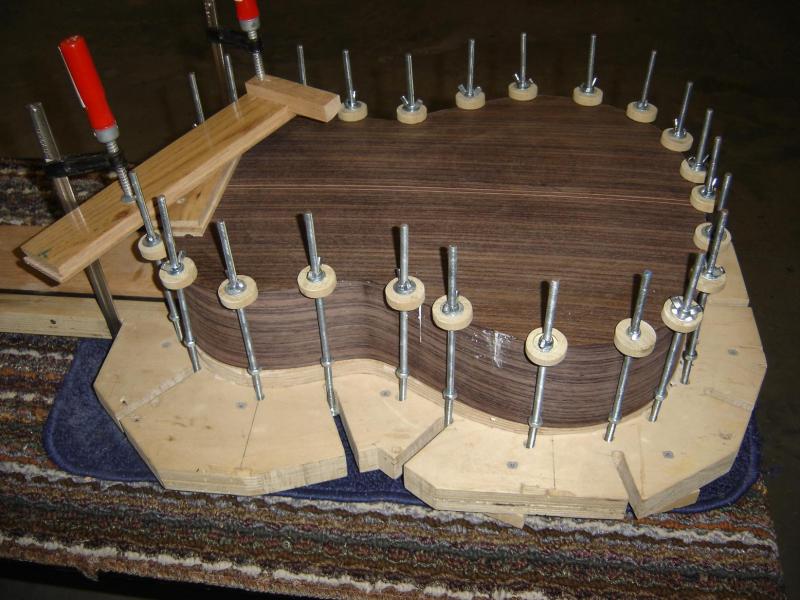

Glueing the back to the sides on the solera.

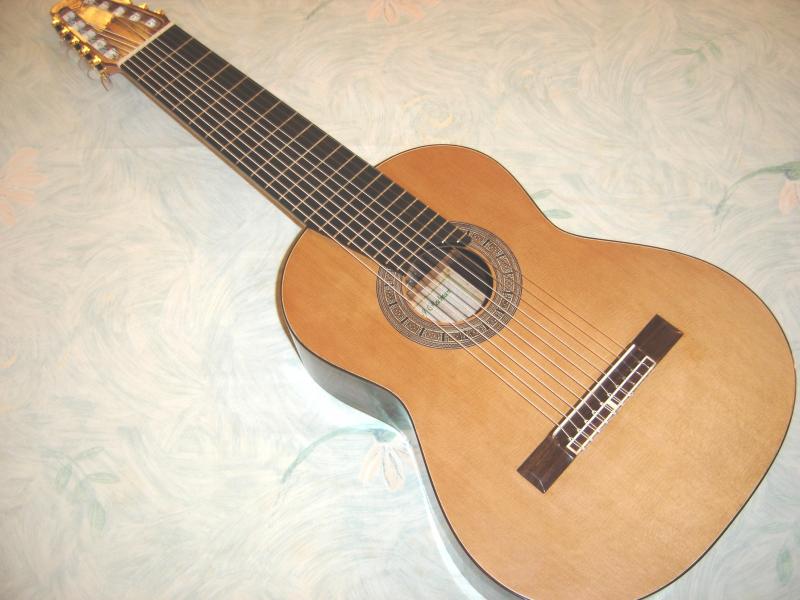

The finished product

Body & neck: Water-based finish

Soundboard: French Polish applied by hand

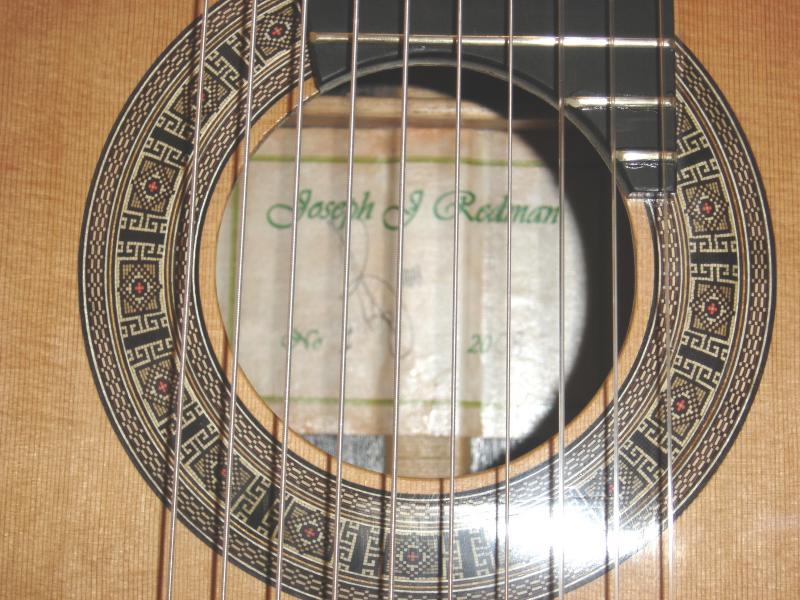

The rosette and label.
